Kanakbhuvan Industries LLP is a specialised manufacturer of high quality ASME/ANSI/DIN standard threaded flanges or screwed flanges in India. We offer immediate delivery programs for standard size of carbon steel threaded flanges and stainless steel threaded flanges. Threaded flanges are widely used in low pressure piping systems, as no welding is involved while connecting the flanges to pipes or other equipment. However, the flange may be welded around the joint after assembly, but it is not considered a satisfactory method of increasing its applications. Threaded flanges are also known as screwed flanges and are similar to slip-on flanges, but the bore is threaded to enable assembling without welding. Threaded pipe flanges are usually used with pipes that have external threads. We offer threaded pipe flanges manufactured at our facility to companies in various industries including shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants and turnkey projects among others.
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Threaded Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Threaded Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Threaded Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Threaded Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |

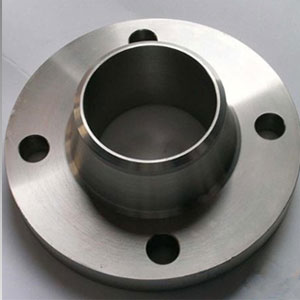

Kanakbhuvan Industries LLP is a specialised manufacturer of high quality ASME/ANSI/DIN standard weld neck flanges in India. We offer immediate delivery programs for standard size of carbon steel weld neck flanges and stainless steel weld neck flanges. Weld neck pipe flanges are connected to the pipe by welding the pipe to the neck of the pipe flange, which helps to pass on the stress from the weld neck to the pipe itself. This also reduces high stress concentration at the base of the hub of the weld neck pipe flanges. Weld neck pipe flanges are generally used in high pressure applications, where hot or cold temperatures exist. The inside diameter of a weld neck pipe flange is machined to match the inside diameter of the pipe. We offer weld neck pipe flanges manufactured at our facility to companies in various industries including shipbuilding, power generation, petrochemical plants, oil refineries, waste water treatment plants, paper mills, pharmaceutical plants and turnkey projects among others.
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Weld Neck Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Weld Neck Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Weld Neck Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Weld Neck Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |

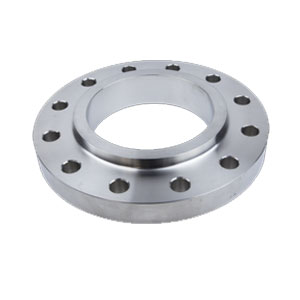

Kanakbhuvan Industries LLP is a specialised manufacturer of high quality ASME/ANSI/DIN standard slip-on flanges in India. We offer immediate delivery programs for standard size of carbon steel slip-on flanges and stainless steel slip-on flanges. Slip-on flanges manufactured in special stainless steel grades, nickel alloy and alloy steel can be supplied with just in time programs. Slip-on pipe flange usually slips over the pipe. Slip-on pipe flanges are typically made with an inside diameter of the pipe flange slightly larger than the outside diameter of the pipe. This allows the slip-on flange to slip over the pipe. Slip-on pipe flanges are welded (usually both inside and outside) to provide strength and prevent leakage. Slip-on pipe flanges can sometimes also have a boss/ring or hub, and can be made with a bore to suit either pipe or tube. Ring pipe flanges and hub pipe flanges are both considered slip-on pipe flanges because they both slip over the pipe. Slip-on flanges are generally preferred by users over weld neck flanges, as they are a cheaper option than weld neck flange and the fact that less accuracy is required when cutting pipe to length.
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Slip-on Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Slip-on Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Slip-on Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Slip-on Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |

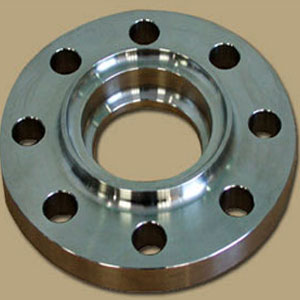

Kanakbhuvan Industries LLP is a specialised manufacturer of high quality ASME/ANSI/DIN industrial socket welding flanges in India. We offer immediate delivery programs for standard size of carbon steel socket weld flanges and stainless steel socket weld flanges. Socket welding flanges manufactured in special stainless steel grades, nickel alloy and alloy steel can be supplied with just in time programs from stock. Socket weld flange is similar to the slip-on flange in outline, but the bore is counter-bored to accept pipe. Socket welding pipe flanges are typically used on smaller sizes of high pressure pipes. Socket weld flanges are widely used in high pressure systems such as hydraulic equipment and steam lines. Socket weld pipe flanges are attached by inserting the pipe into the socket end and then applying fillet weld around the hub of the flange. This allows for a smooth bore and better flow of the fluid or gas inside of the pipe. An optional internal weld may be applied in high stress applications.
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Socket Welding Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Socket Welding Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Socket Welding Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Socket Welding Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |

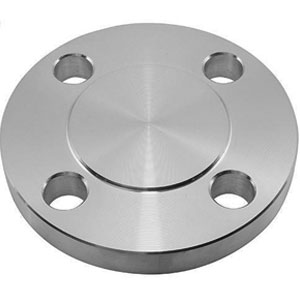

Kanakbhuvan Industries LLP is a specialised manufacturer of high quality ASME/ANSI/DIN industrial blind flanges in India. We offer immediate delivery programs for standard size of carbon steel blind flanges and stainless steel blind flanges. Plate blind flanges manufactured in special stainless steel grades, nickel alloy and alloy steel can be supplied with just in time programs. Commonly referred as blanking flanges, Blind pipe flanges are widely used in high pressure applications. Blind flanges are generally used to seal the end of a piping system to prevent flow of liquids or gases. The use of blind flanges allows ease of access to a piping system once it has been closed. Our blind flanges are available with raised or RTJ faces and also with female threads. Blind flanges can be supplied with or without hub as per the customer requirements.
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Lap Joint Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Lap Joint Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Lap Joint Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Lap Joint Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |

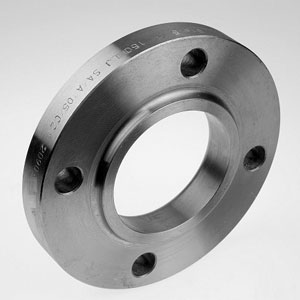

Kanakbhuvan Industries LLP is a specialised manufacturer of high quality ASME/ANSI/DIN industrial lap joint flanges in India. We offer immediate delivery programs for standard size carbon steel lap joint flanges and stainless steel lap joint flanges. Lap joint flanges manufactured in carbon steel, special stainless steel grades, nickel alloy and alloy steel can be supplied with just in time programs. Lap Joint Flanges are similar to other types of industrial flanges, but it does not have a raised face. Lap joint flanges are used in conjunction with a “Lap Joint Stub End”. The total initial cost of a lap joint flange along with a stub end is around one-third higher than that of comparable welding neck flanges. The pressure holding capacity of lap joint flanges is comparatively lower, and the fatigue life for the assembly is only one tenth that of welding neck flanges.
| Size | 1/2″ (15 NB) to 48″ (1200NB) |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Lap Joint Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Lap Joint Flanges | ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Lap Joint Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Lap Joint Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |

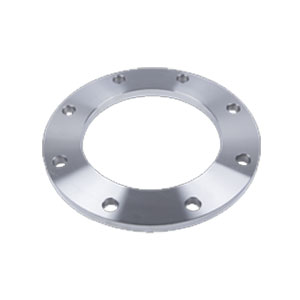

Kanakbhuvan Industries LLP is a specialised manufacturer of high quality ASME/ANSI/DIN standard plate flanges in India. We offer immediate delivery programs for standard size of carbon steel plate flanges and stainless steel plate flanges. Plate flanges can be manufactured as per custom size requirements of our customers. Plate flanges are most widely used in fuel and water pipelines, where two flange plates are bolted together with a gasket in between them. The flange plate will have bolt holes all around the perimeter and will be used to create junctions, tees and joints.
| Size | 1/2″ (15 NB) to 48″ (1200NB), Custom Sizes |
| Standards | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Pressure Ratings | Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Carbon Steel Plate Flanges | ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8 |
| Stainless Steel Plate Flanges | ASTM A182, A240 – F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L |
| Alloy Steel Plate Flanges | ASTM A182 F1, F5, F9, F11, F22, F91 |
| Special Alloy Plate Flanges | Duplex, Super Duplex, Nickel Alloys |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| Coating/Surface Treatment | Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized |
| Value Added Services | CNC Machining, Customised Flanges |
